TRUSEEN Dry Mix Mortar Plant is widely used to produce all kinds of special mortar and common mortar, such as plaster mortar, waterproof mortar, thermal insulation mortar, tile adhesive mortar, tile grout mortar, bonding mortar,etc. These mortars are widely used as building materials for bridges, railways, workshop, warehouse, residential construction.
TRUSEEN Dry Mortar Plant can be divided into: Simple Dry Mix Mortar Production Line, Semi-automatic Dry Mortar Mixing Plant and Full Automatic Dry Mortar Mixing Plant. We also support customized.
Here are details of our Simple Dry Mix Mortar Production Line:

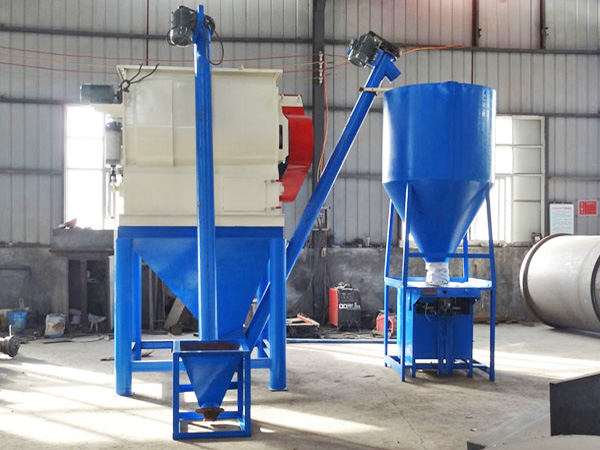

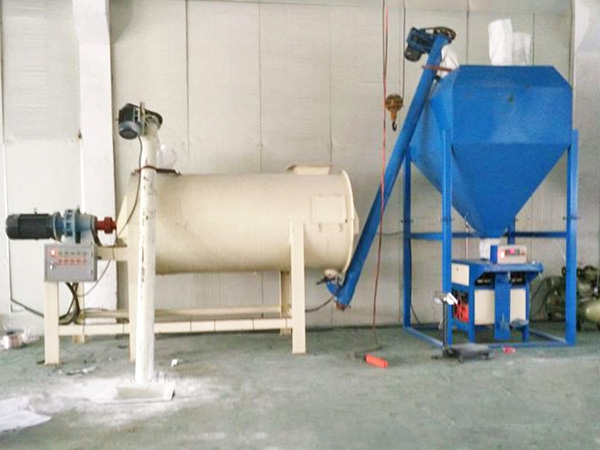

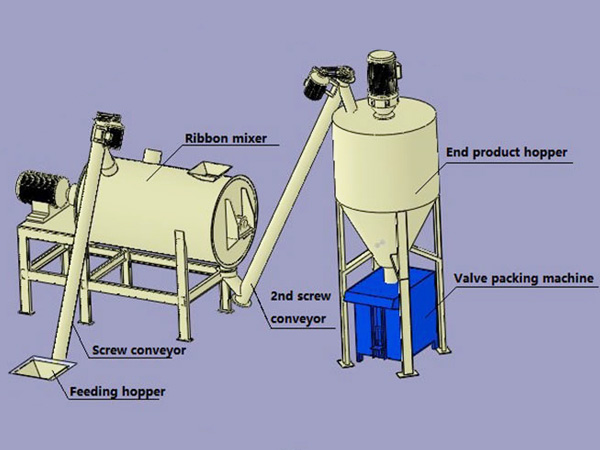

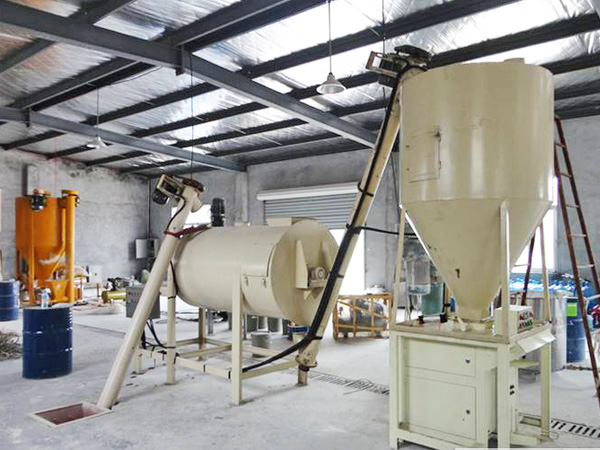

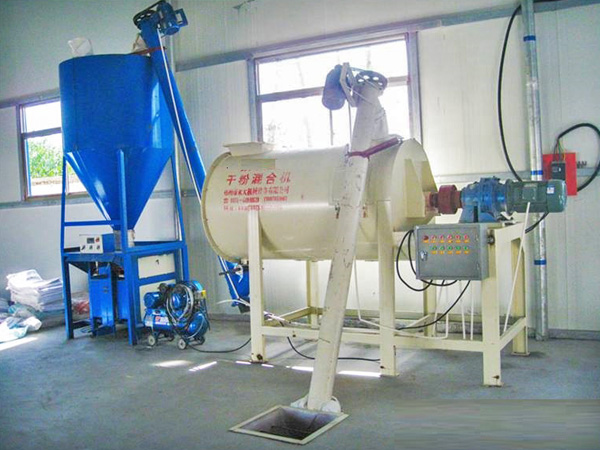

Simple Dry Mix Mortar Production Line is used for producing dry mortar with productivity of 1-5t/h. It’s mainly not only composed of screw mixer, screw conveyor, vertical finished product silo, valve type packing machine, but also includes air compressor, electric control cabinet etc.
The production line has advantages of low investment with fast investment return, suitable for initial/individual investment.
|
Model |
Mixing Power: (KW) |
Lifting Motor Power: (KW) |
Production Capacity: (KG/batch) |
Capacity: (T/H) |
Dimension: (MM) |
Cylinder Diameter: (MM) |
|
300 |
2.2 |
2.2 |
300 |
0.5-1 |
2200*700*1500 |
Ø700 |
|
500 |
5.5 |
2.2 |
500 |
1-1.5 |
3000*800*2000 |
Ø800 |
|
1000 |
7.5 |
2.2 |
1000 |
2-3 |
3300*1050*2100 |
Ø1050 |
|
1500 |
11 |
4 |
1500 |
3-4 |
3300*1050*2100 |
Ø1050 |
|
2000 |
11 |
4 |
2000 |
4-5 |
3680*1200*2200 |
Ø1200 |
