The PLD series concrete batching machines consists of feeding system, weighing system and electric control system, it is applicable in different situation, such as bridges and road construction and residential , commercial, industrial constructions.

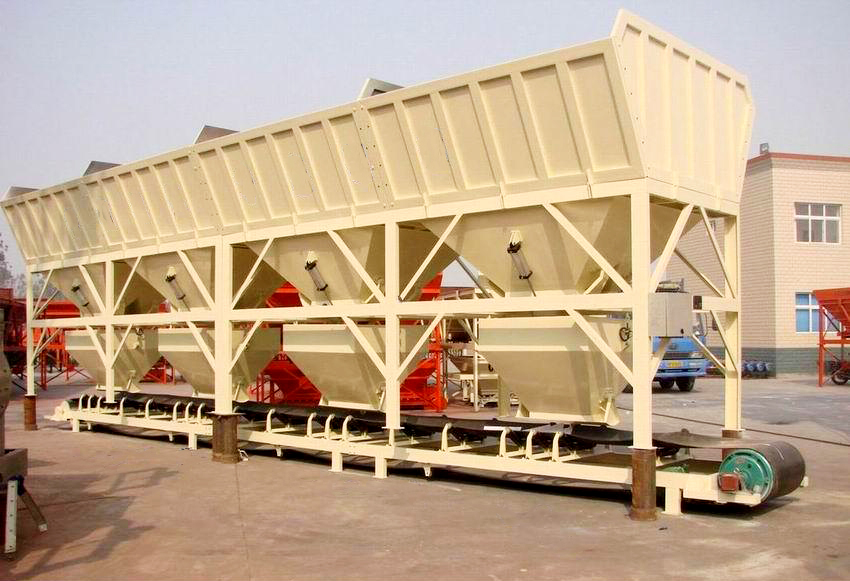

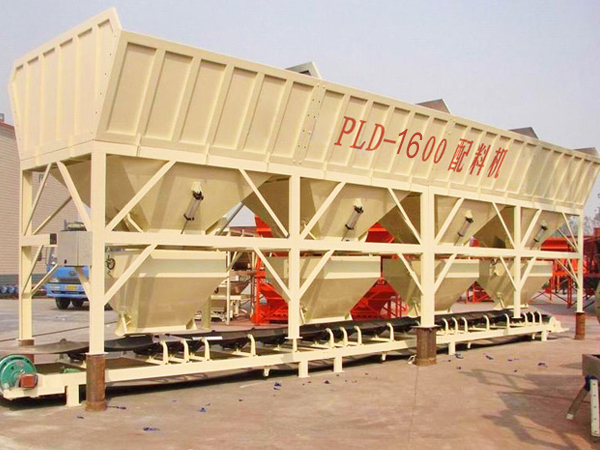

PLD1600 Concrete Batching Machine( separate weighing with 4 hoppers ) accomplish the batching procedure of 4 kinds of materials.
Model | PLD1600 |
Volume of Weighing hopper | 1600L |
Storage bin capacity | 15m3×4 |
Productivity(drier) | 80m3/h |
Batching accuracy | ±1% |
Maximum weighing magnitude | 3000kg |
Kinds of batching aggregate | 2-4 |
Feeding height | 3000mm |
Transition belt speed | 1.25m/s |
Power (kw) | 3×4+5.5=17.5 |
Total weight (kg) | 5600 |
Outline dimension (mm) | 9500×2000×3600 |
