JZM Diesel Concrete Mixer

  • 1.Excellent manufacturing team with experience of over 20 years.
  • 2.All can be customized to meet your needs&boost productivity.
  • 3.Passed CE&ISO9001:2008 quality attestation.
  • 4.Long-term cooperated transport company ensure the timely and safe delivery.
  • 5.One-stop service save your precious time.
Leave Message Chat Online

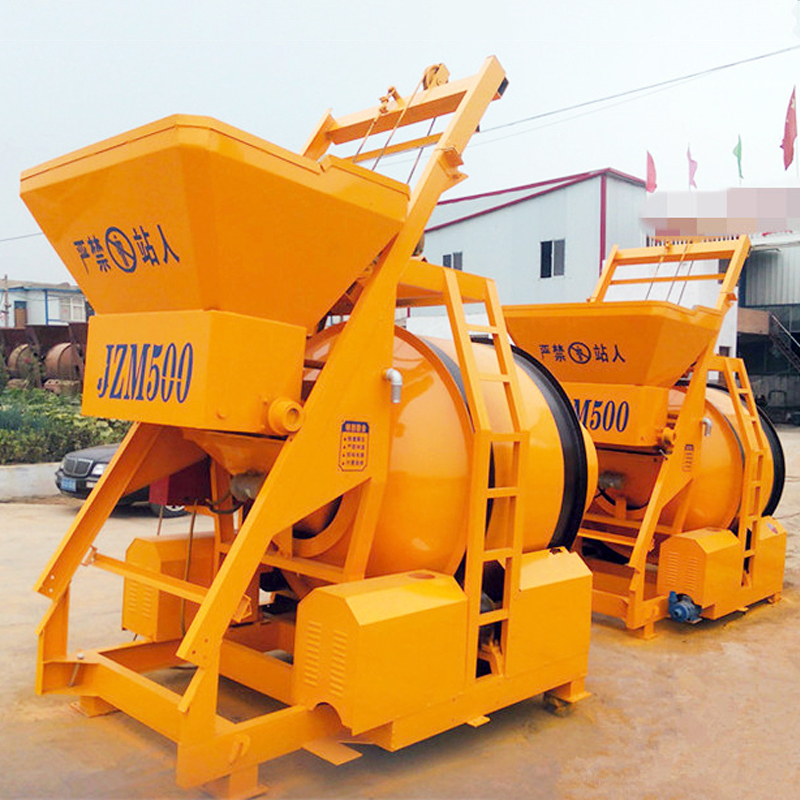

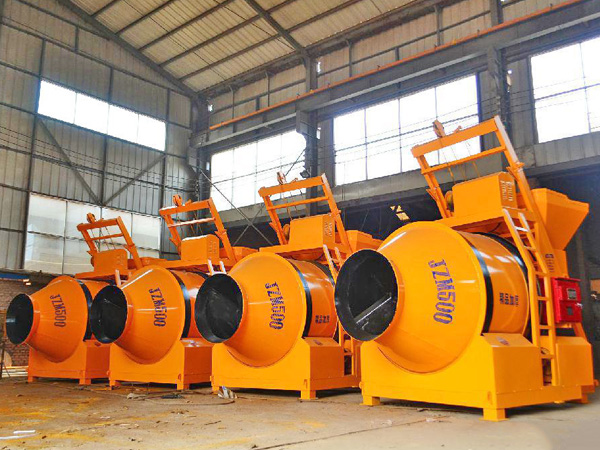

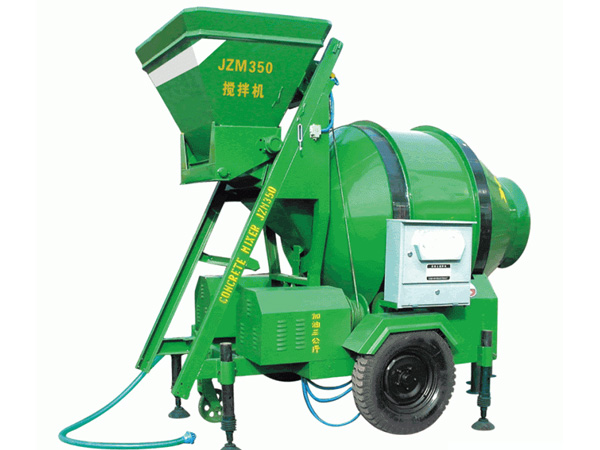

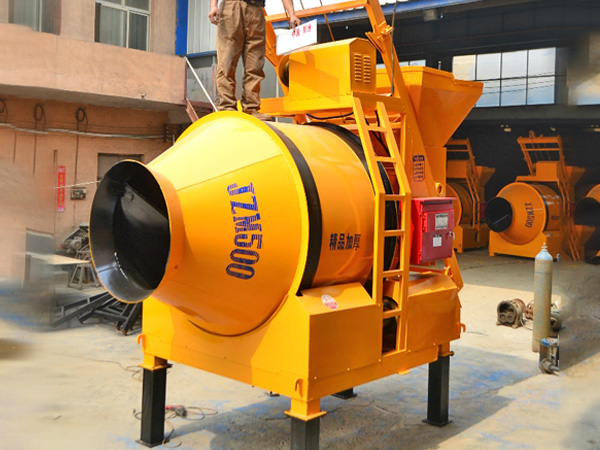

JZM series Mobile Mixer Machine is a self-falling concrete mixing machine. It can mix plastic and semi-dry hard concrete.

It uses rubber roller friction drive. It has advantages such as low noise stable running operation easy to move good mixing quality higher production efficiency and can applies in the general construction site like roads bridges and water and electricity projects especially in urban residential construction.

Model  JZM350  JZM500  JZM750
 Nature of work  Discharge capacity  350L  500L  750L
 Feeding capacity  560L  800L  1200L
 Productivity  13 m3/h  18-20m3/h  30-35m3/h
 Mixing drum rotating speed  15 r/min  15 r/min  12.26r/min
 Max.aggregate particle  60mm  60mm  80mm
 Precision of water supply  ≤2%  ≤2%  ≤2%
 motor  Agitator motor  5.5KW  2×5.5KW  2×7.5KW
 Lifting motor  4.5KW  5.5KW  7.5KW
 Pump motor  0.75KW  1.1KW  1.1KW
 Tire specifications  650-16  700-16  750-16
 Maximum towing speed  20km/h  20km/h  20km/h
 Outline dimension (L*W*H)  3800*2050*2690  5710*2350*5050  6216*2300*6060
