Double Concrete Mixing Plant

  • Excellent manufacturing team with experience of over 20 years.
  • All can be customized to meet your needs&boost productivity.
  • Passed CE&ISO9001:2008 quality attestation.
  • Long-term cooperated transport company ensure the timely and safe delivery.
  • One-stop service save your precious time.
Leave Message Chat Online

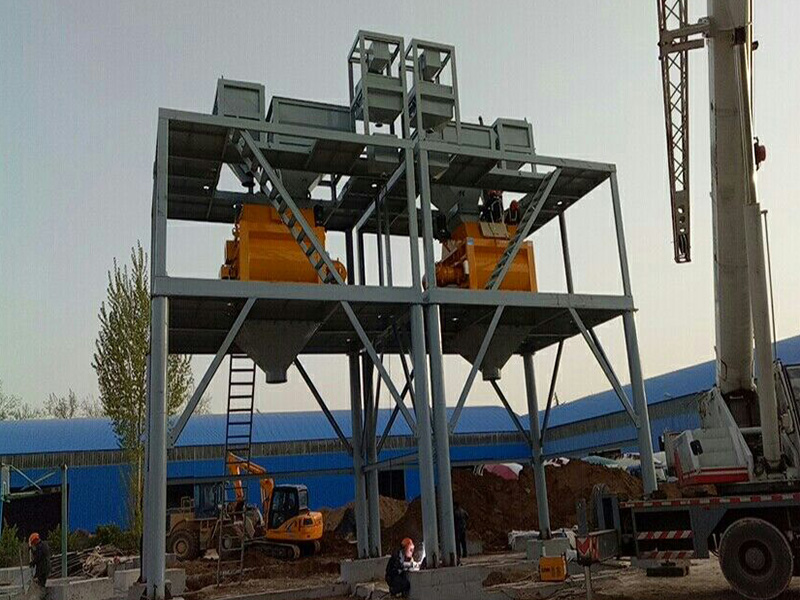

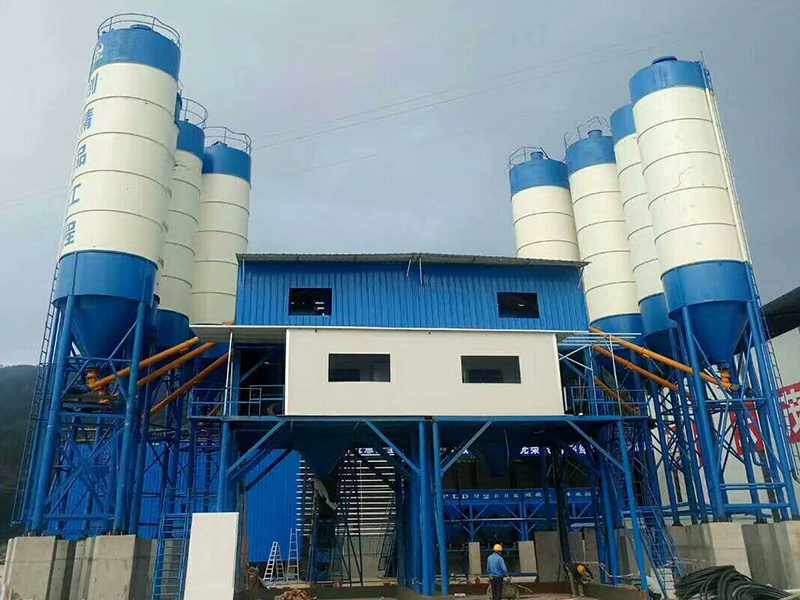

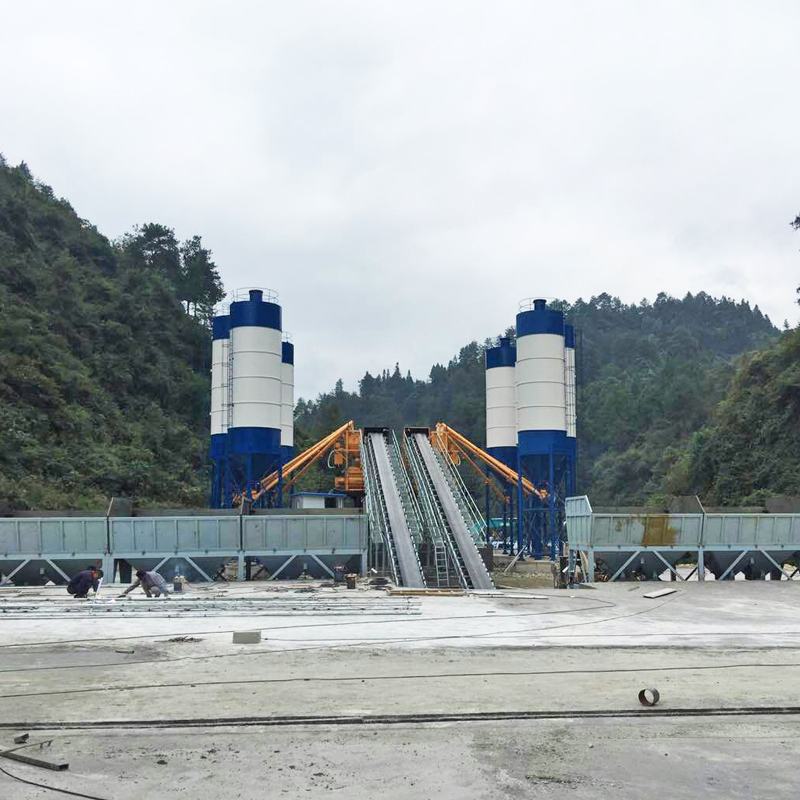

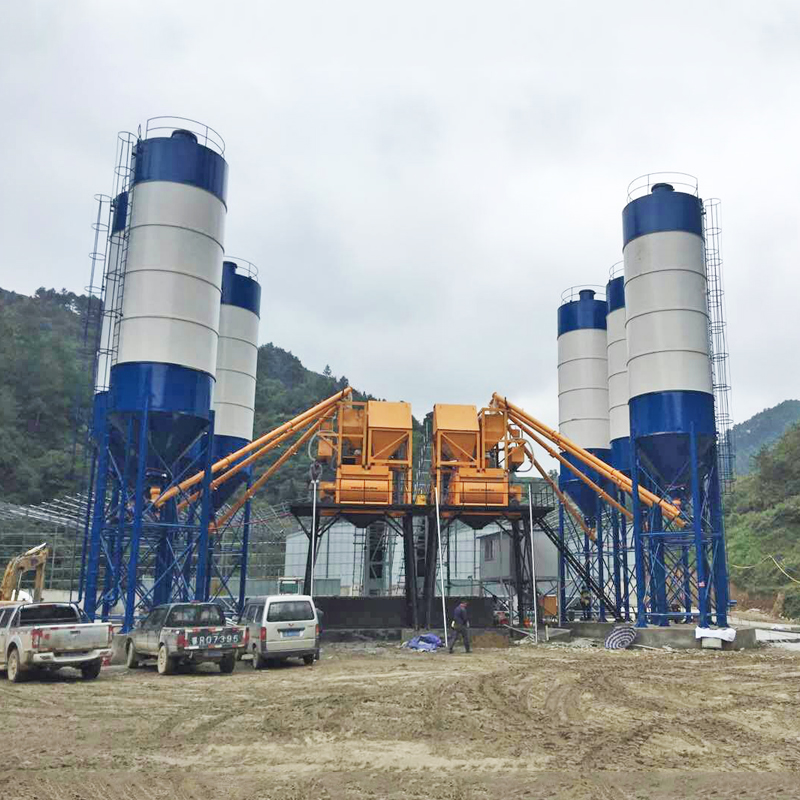

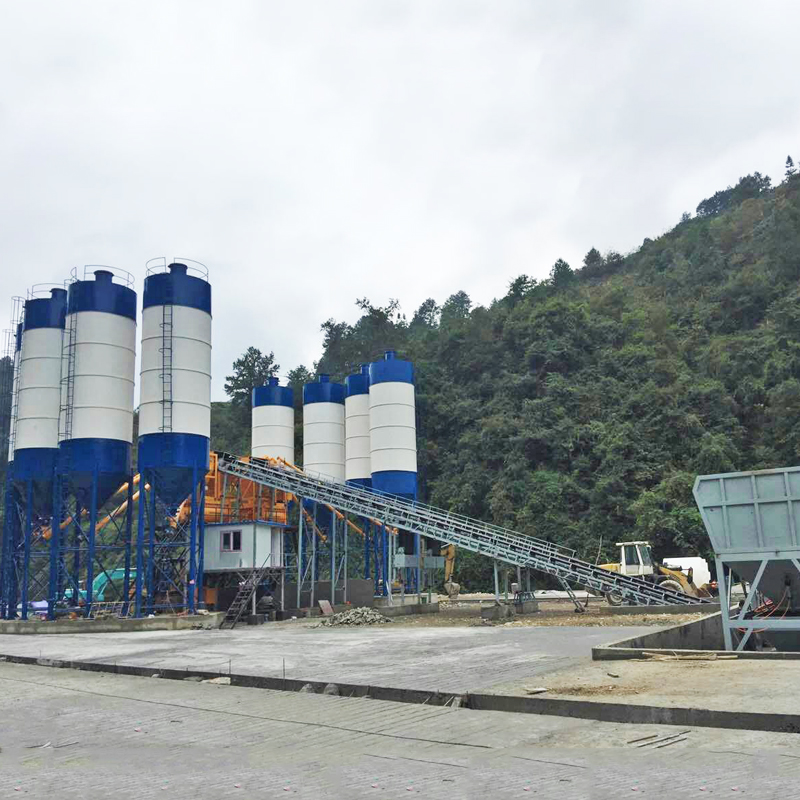

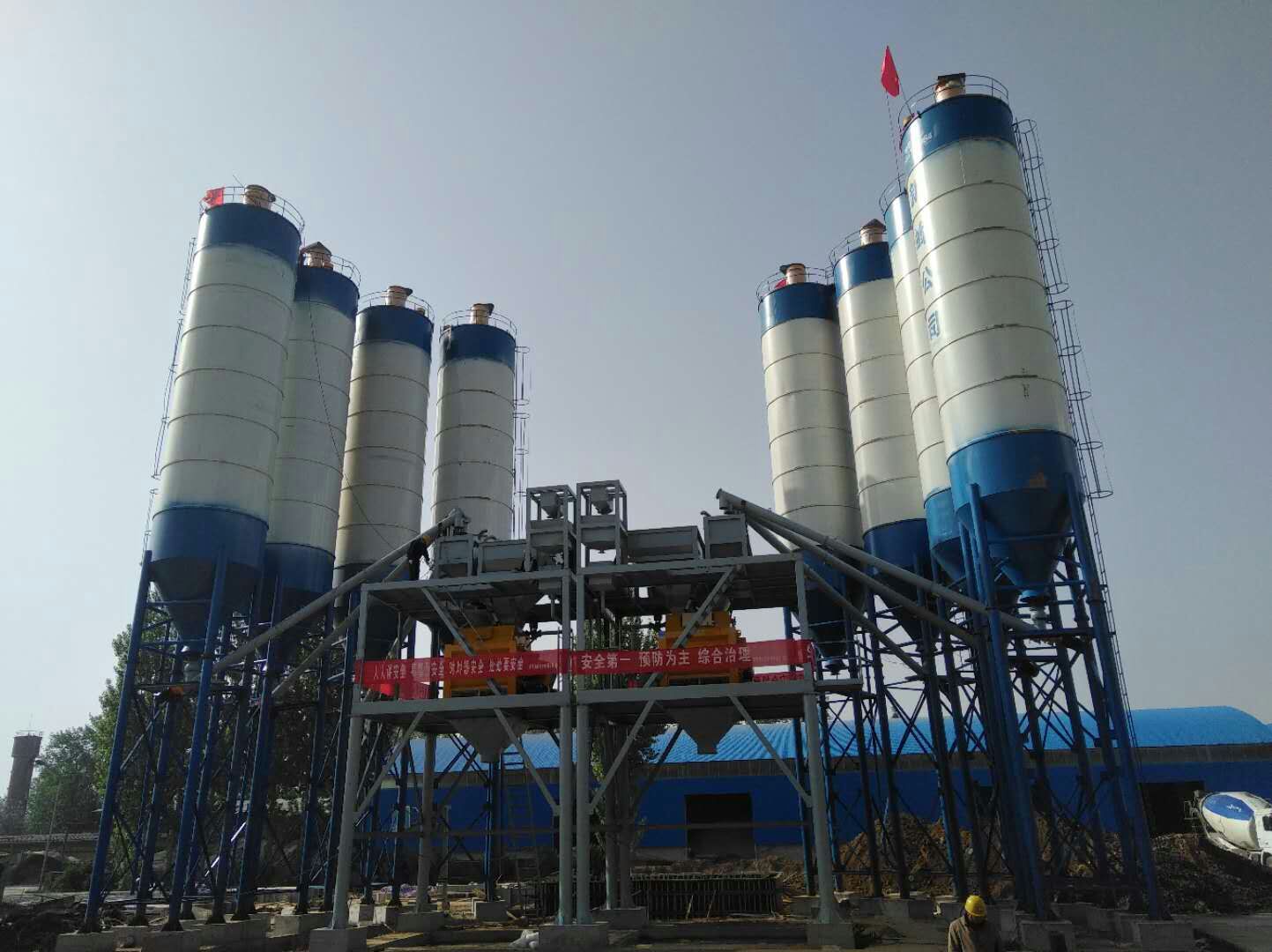

Double Concrete Mixing Plant adopt two JS twin-shaft mixer, so it can mix dry-hard concrete, plastic concrete, lightweight aggregate and kinds of mortar. What’s more, due to its high working efficiency and large capacity output, the Double Concrete Mixing Plant is widely used in large and medium sized construction, road, bridge, railway and others. In short, the Double Concrete Mixing Plant is ideal equipment for users to buy.

Features of Double Concrete Mixing Plant:

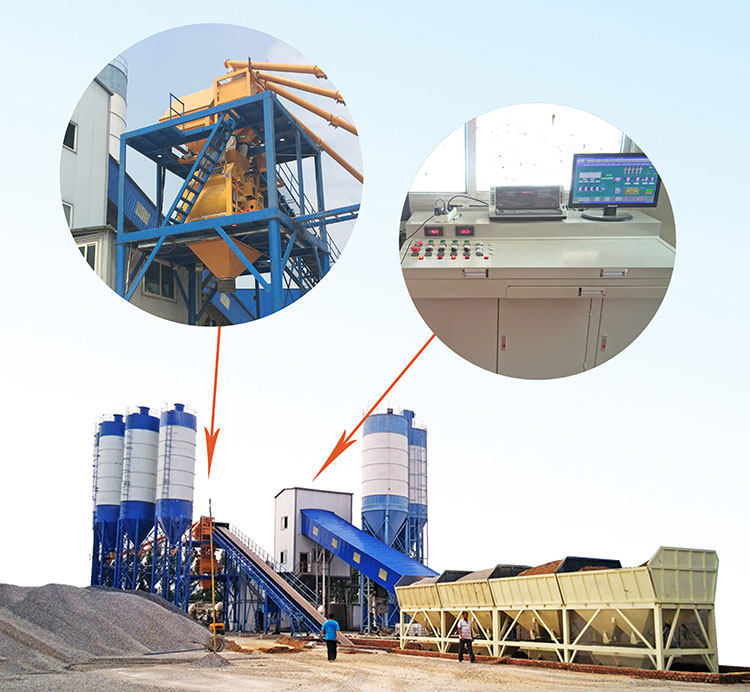

  • The mixing system adopts JS series twin-shaft concrete mixer with good mixing homogeneity.
  • With compact structure of modular organization, which can meet the requirements of container transport, and is convenient for transport and quick installation dis-assembly.
  • Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
  • Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with over voltage warning and low oil level warning, safe and reliable.

 Model HZS25 * 2 HZS35 * 2 HZS50 * 2 HZS75 * 2 HZS60 * 2 HZS90 * 2 HZS120 * 2 HZS180 * 2
Global parameter Maximum productivity (m3/h)  50  70  100  150  120  180  240  360
Discharging height (m)  1.5–4.2  1.6–4.2  4.2  4.2  4.2  4.2-4.5  4.5  4.5
Working cycle time (s)  72  72  72  72  60  60  60  60
Total power (kw)  50*2  75*2  88*2  110*2  105*2  145*2  210*2  288*2
Mixer Model JS500 * 2 JS750 * 2 JS1000 * 2 JS1500 * 2 JS1000 * 2 JS1500 * 2 JS2000 * 2 JS3000 * 2
Batcher Model PLD800 * 2 PLD1200 * 2 PLD1600 * 2 PLD2400 * 2 PLD1600 * 2 PLD2400 * 2 PLD3200 * 2 PLD4800 * 2
Pneumatic system Air compressor  1.0–7  1.0–7  1.5–7  1.8–7  1.5–7  1.8–7  1.8–7  1.8–7
Discharge pressure (MPa)  0.8  0.8  0.8  0.8  0.8  0.8  0.8  0.8
 Displacement (m3/min)  1.67  1.67  1.67  1.67  1.67  1.67  1.67  1.67
 Motor power  5.5*2  5.5*2  7.5*2  11*2  7.5*2  11*2  11×2*2  11×2 *2
Measurement system Aggregate weighing accuracy  ±2%  ±2%  ±2%  ±2%  ±2%  ±2%  ±2%  ±2%
Cement weighing accuracy  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%
Water weighing accuracy  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%
Additive weighing accuracy  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%
Total weight  32T  46T  56T  74T  72T  92T  104T  140T
