Concrete Pump

  • 1.Excellent manufacturing team with experience of over 30 years.
  • 2.All can be customized to meet your needs&boost productivity.
  • 3.Passed CE&ISO9001:2008 quality attestation.
  • 4.Long-term cooperated transport company ensure the timely and safe delivery.
  • 5.One-stop service save your precious time.
Leave Message Chat Online

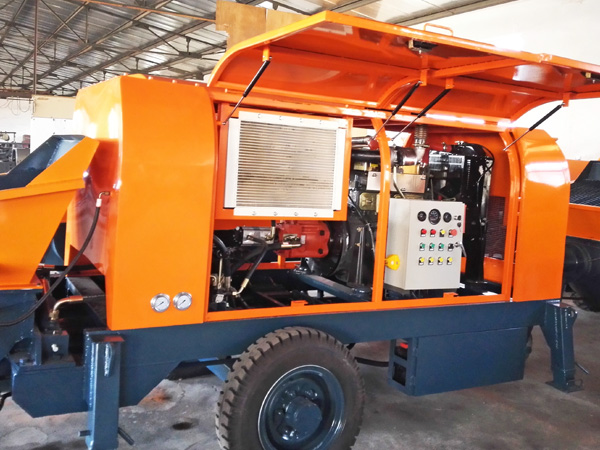

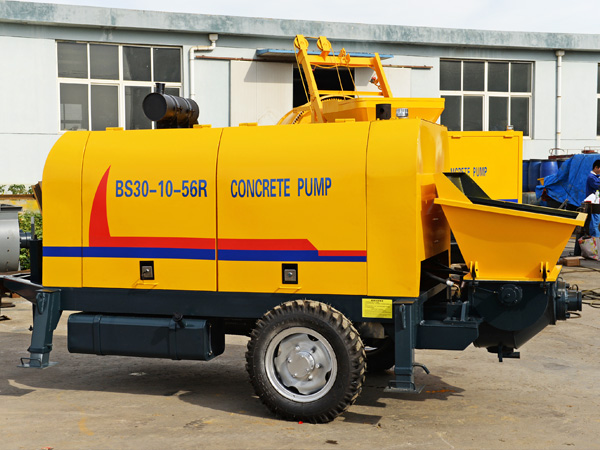

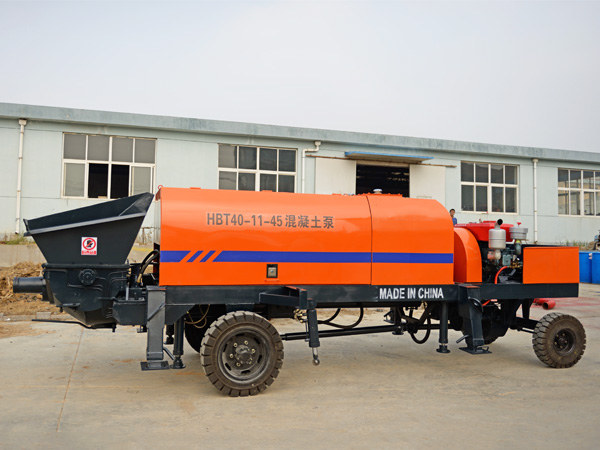

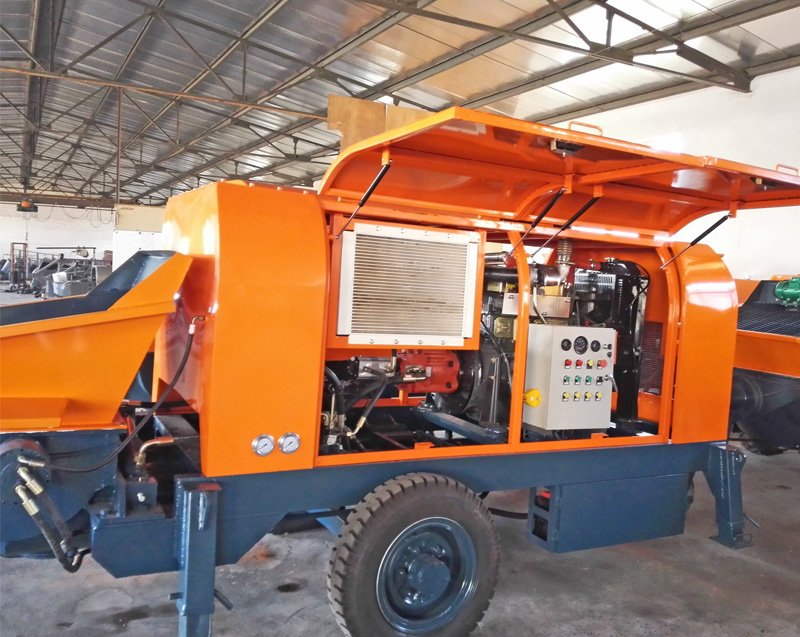

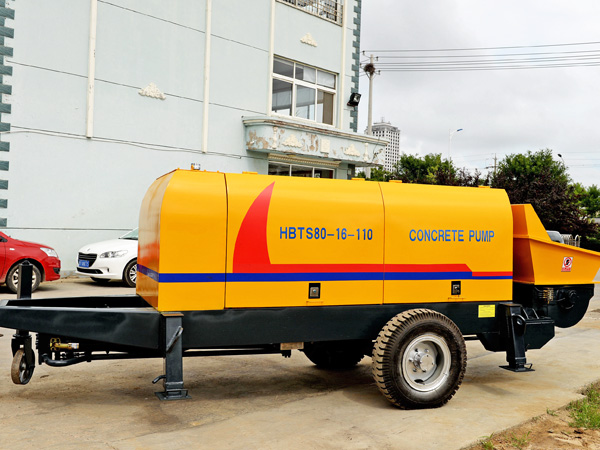

With famous brand variable plunger pump, the concrete pump has high rated pressure.

The valve groups are Eton or Huade, which are high quality. These series pump also have diesel type, which can use in the place without electricity.

1.With hydraulic electric control system, the concretepump is easy operate and maintain.

2.The oil pump use famous brand to guarantee the quality.

3.With air & water cooling system, the machine can work normally even in high temperature weather.

4.Central lubrication system can supply lucubration oil directly with high pressure.

Stone Size (cm) 0-2 0-3 0-4 0-4
Model HBTS30 HBTS40 HBTS60 HBTS80
Mail Oil Pump Discharge(ml/Min) 71 112 112×2 112×2
Theory Capacity(m3) 30 40 60 80
Motor Power 37 45 90 90
Main Oil Tank Diameter/Stoke (mm) Φ80/845 Φ100/1300 Φ125/1650 Φ125/1650
Concrete Tank Diameter/Stoke(mm) Φ140/845 Φ160/1300 Φ200/1650 Φ200/1650
Hydraulic Hose Manuli, Italy Manuli, Italy Manuli, Italy Manuli, Italy
Seal Parker USA Parker USA Parker USA Parker USA
Electric Control System Schneider, France Schneider, France Schneider, France Schneider, France
PLC Brand Omron, Japan Omron, Japan Omron, Japan Omron, Japan
Remote Control Wireless Remote Control
High/low Voltage Conversion No Yes Yes Yes
Valve Group  Huade, China Huade, China Huade, China Huade, China
Pumping Distance Level/Vertical (m) 300/120 400/100 500/130 500/130
Lubrication System Automatic Hydraulic Automatic Hydraulic Automatic Hydraulic Automatic Hydraulic
Discharge Pipe Diameter(mm) Φ100 Φ125 Φ180 Φ180
