Concrete Mixer Pump

  • 1.Excellent manufacturing team with experience of over 30 years.
  • 2.All can be customized to meet your needs&boost productivity.
  • 3.Passed CE&ISO9001:2008 quality attestation.
  • 4.Long-term cooperated transport company ensure the timely and safe delivery.
  • 5.One-stop service save your precious time.
Leave Message Chat Online

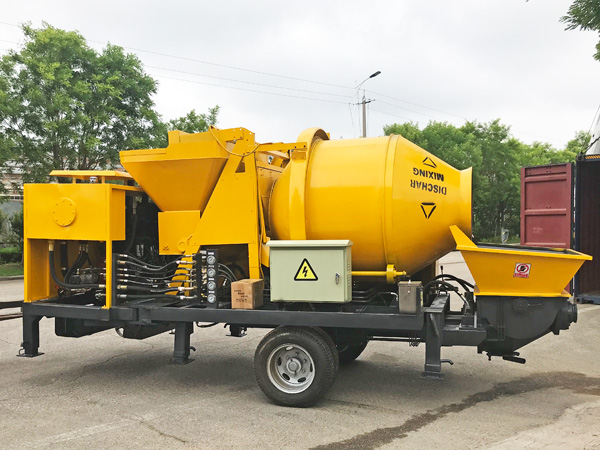

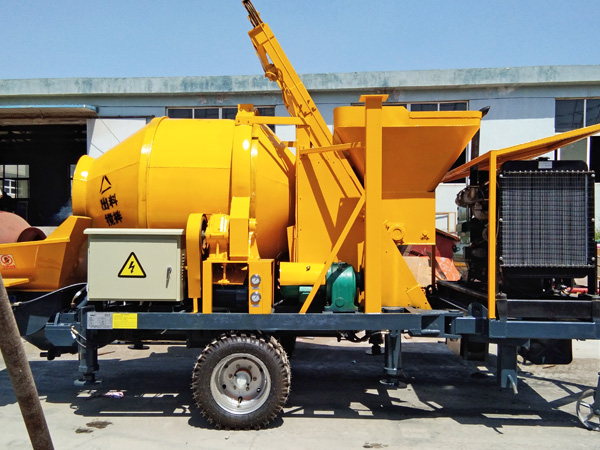

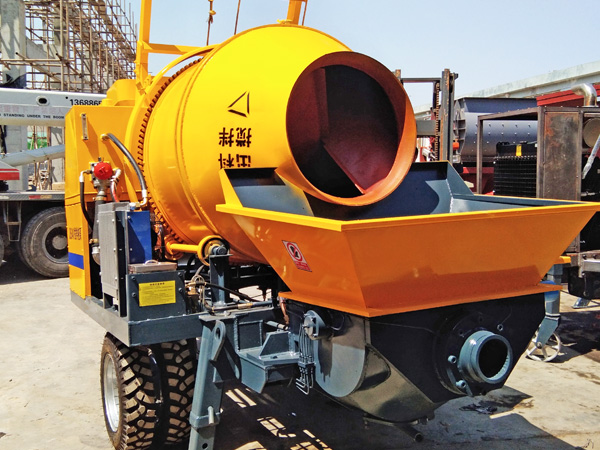

The concrete mixer pump is compact structure, can pump both big & fine size concrete , slurry and so on. It is used in the project of small capacity and easy movable. These mixer pumps also have diesel type, which can use in the place without electricity.

  • with experienced technology, the pump have reliable quality.
  • with double layer design, the electric control panel have good sealed, water@dust proof.
  • famous brand for PLC, so it is easy to control.
  • use wear resistant alloy material, the mixer can use long time.
  • with double raw tires, the machine can move in either smooth road or bumpiness road.
Technical Data JBS30 JBS40 JBS30R JBS40R
Max. Theo. Concrete Output (cbm/h) 24 30 32 40
Max. Concrete Pumping Pressure(MPa) 10 8 10 8
Max Pumping Distance (m) (Vertical/Level) 500/120 400/100 500/120 400/100
Power System Electric Electric Diesel Engine Diesel Engine
Main Motor Power(KW) 45 45 62.5 62.5
Rated speed (r/min) 1480 1480 2000 2000
Main Oil Pump Discharge(ml/min) 112 140
Concrete Tank Diameter/Stoke(mm) 160*1000 180*1000 160*1000 180*1000
Main Oil Pump Tank Diameter*Stoke(mm) 100*1000 100*1000 100*1000 100*1000
Hoist Hopper Volume (cbm) 0.4 0.4 0.4 0.4
Max. Aggregate Size(mm) 40/30/25 40/30/25 40/30/25 40/30/25
Discharge Pipe Diameter(mm) 140 150 140 150
Mixer Input Volume(m3) 0.56 0.56 0.56 0.56
Mixer Output Volume(m3) 0.45 0.45 0.45 0.45
Mixing Motor Power(KW) 5.5 5.5
Elevating Motor Power (KW) 4.5 4.5
Dimensions(L*W*H)(mm) 4200*2300*2600 4800*2300*2600 4800*2300*2600 4800*2300*2600
Total weight (KG) 5500 5800 6000 63000
